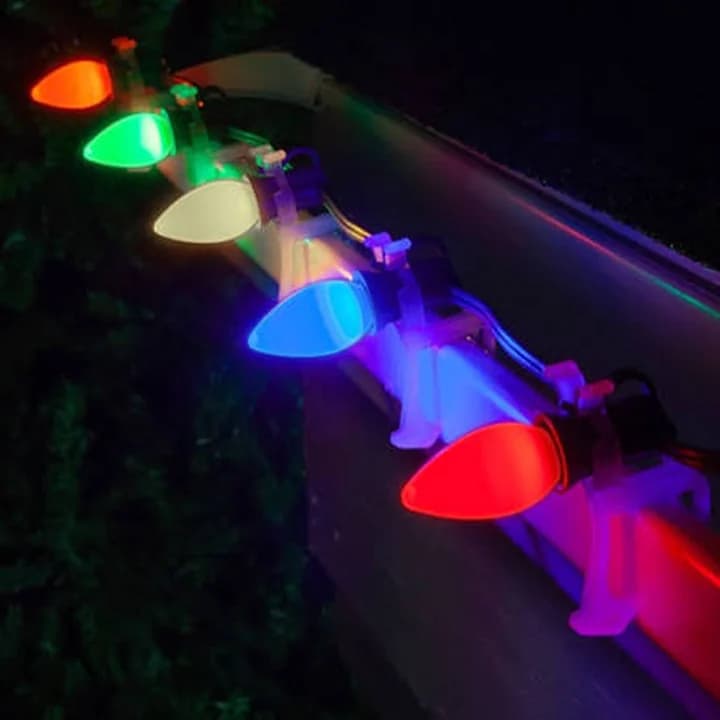

C7 Smooth Opaque LED Christmas Light Bulbs – E12 Base

A professional-grade C7 retrofit lamp with a smooth opaque, high-strength impact-resistant lens and a soft, uniform illuminated appearance.

Best for

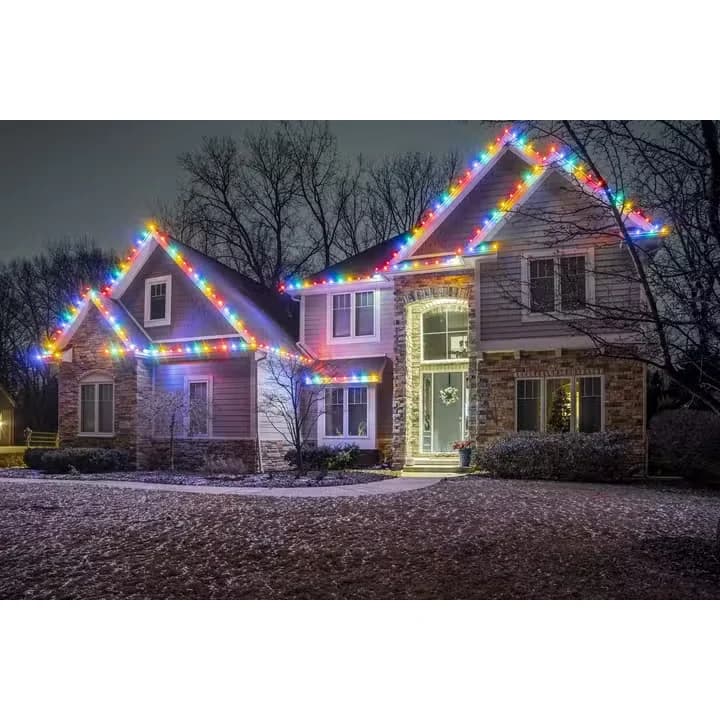

Compact rooflines, trees, hospitality décor, storefronts, wreaths, and professional replacement programs.

Smooth opaque impact-resistant lens
Nickel-plated E12 base
Steady and dimmable output
Professional C7 system component

Request model data & quote

Samples and project quantities are available after model and compatibility confirmation.

Product information

Description & Specifications

This professional C7 retrofit lamp uses a smooth opaque, high-strength impact-resistant lens to produce a softer, more uniform point of light.

Its nickel-plated E12 base helps resist corrosion in matched commercial C7 socket lines. The reference model provides steady, dimmable output from two SMD LEDs.

It is supplied as one component of a complete C7 installation system. Socket spacing, wire, plugs, clips, dimmer compatibility, project quantity, and local electrical requirements are confirmed together before supply.

Published values apply only where the matching reference model is identified. Final electrical, environmental, packaging, and compliance data follow the approved production model.

Grade: Professional / commercial grade
Bulb shape: C7
Lens: Smooth opaque, high-strength impact-resistant lens
Bulb color: Smooth opaque
Base: C7 / E12 nickel-plated anti-corrosion screw base
Light source: 2 SMD LEDs
Light action: Steady; dimmable
Luminous flux: 22 lumens
Input: 120V, 0.85–1W
Protection: IP65
Dimensions: 1 5/8 in lens height; 2 1/2 in total height; 7/8 in lens diameter
Average life: 60,000 hours
Recommended viewing distance: 30–40 ft

System compatibility

What This Bulb Works With

Compatibility is checked as a complete installation package, not from the lamp base alone.

Socket line: E12 C7 commercial socket line; spacing selected from the approved roofline layout
Mounting clip: All-in-one clip selected for the lamp, socket orientation, gutter, or shingle edge
Power connection: SPT-1 or SPT-2 male/female quick-connect plug matched to the specified wire
Control: Steady-light circuit with an approved mechanical timer, photocell, or compatible dimmer
Not compatible: Not an addressable RGBW pixel. Choose the RGBW Pixel System when individual-light color control is required.

Reference BOM

12-Inch Spacing Planning Example

At 12-inch socket spacing, planned lamp quantity is approximately equal to the roofline length in feet. Add 5–10% service stock.

Roofline length	Lamps	Matched socket line	Clips	Control / circuit
50 ft	50 + 3–5 spares	50 ft matched socket line	50	Single zone after load review
100 ft	100 + 5–10 spares	100 ft matched socket line	100	Timer/photocell after load review
200 ft	200 + 10–20 spares	200 ft total planned line	200	Split according to circuit plan
500 ft+	Calculated from drawings	Configured from project layout	Calculated from layout	Multi-zone project design

Reference configuration only—not a universal electrical layout. Final circuit loading, maximum run length, wire type, weather protection, and zoning must be approved for the selected components and local requirements.

Send your roofline drawing for a complete BOM

Selection guide

Compare C7 Lens Styles

Choose by daytime appearance, diffusion, viewing distance, and the visual effect required by the project.

Compact faceted C7 lampC7 Faceted LED Bulb

A compact faceted C7 retrofit lamp for denser decorative layouts, smaller roofline details, trees, and serviceable seasonal-lighting systems.

View model Smooth clear C7 lampC7 Clear LED Bulb

A smooth clear C7 SMD lamp for compact installations that need clean, defined points of colored or white light.

View model Current modelC7 Smooth Opaque LED Bulb

A professional-grade C7 retrofit lamp with a smooth opaque, high-strength impact-resistant lens and a soft, uniform illuminated appearance.

Selected

FAQ

Frequently Asked Questions

Can this bulb be used on an existing C7 light line?

It can be considered when the existing line uses the same E12 base and its voltage, wire type, socket condition, dimmer, and outdoor protection match the approved lamp model. We recommend confirming the complete line before ordering replacements.

How many bulbs are required for a roofline?

At 12-inch socket spacing, the planned lamp count is approximately equal to the roofline length in feet. Add 5–10% service stock. Other spacing options must be calculated from the actual drawing.

Can replacement bulbs be supplied without a complete system?

Yes, replacement-lamp supply can be discussed after compatibility is confirmed. For a new installation, we recommend configuring the bulb, socket line, wire, plugs, clips, and control together.
