This is a light-source component of the C7/C9 Christmas Installation System.
View the complete system
C9 Smooth Opaque LED Christmas Light Bulbs – E17 Base
A smooth opaque milky C9 lamp designed to provide an even, diffused point of light across professional seasonal rooflines and displays.

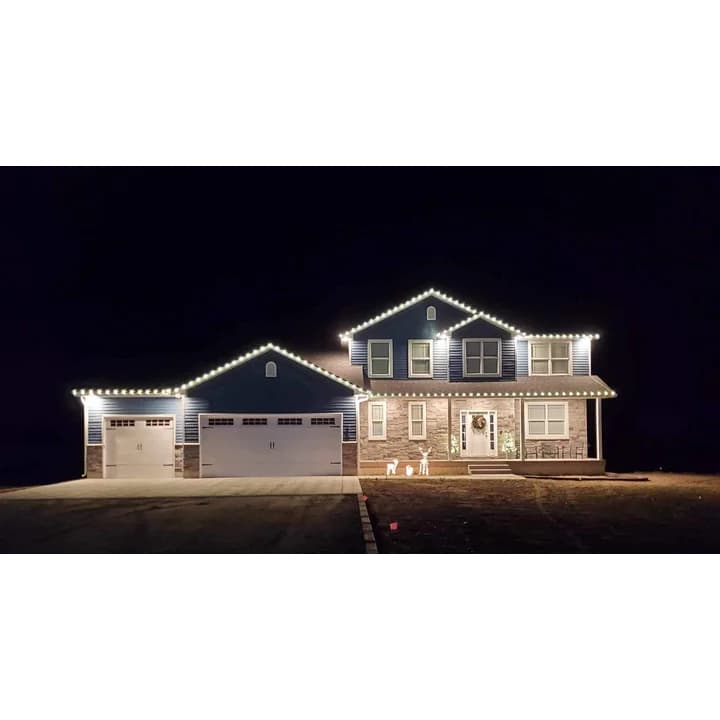

Premium rooflines, hospitality properties, retail façades, event décor, and coordinated white-light programs.
- Smooth opaque milky lens
- E17 C9 replacement format
- Replaceable system component
- Project and wholesale supply
Samples and project quantities are available after model and compatibility confirmation.
Description & Specifications
This C9 option is intended for projects that prioritize a soft, traditional illuminated appearance and an opaque lens when the system is switched off.
The milky lens diffuses the light across the bulb surface while the E17 format integrates with a project-matched commercial C9 socket line.
It is supplied as part of a professional lighting configuration. Lamp color, socket line, spacing, wire, plugs, control method, and replacement quantity are confirmed together.
Published values apply only where the matching reference model is identified. Final electrical, environmental, packaging, and compliance data follow the approved production model.
- Grade
- Professional / commercial grade
- Bulb shape
- C9
- Lens
- Smooth opaque, impact-resistant lens; multicolor options
- Base
- C9 / E17 nickel-plated anti-corrosion screw base
- Light source
- 3 SMD LEDs
- Light action
- Steady; dimmable
- Luminous flux
- 30 lumens
- Input
- 120V, 0.85–1.5W
- Protection
- IP65
- Dimensions
- 2 1/4 in lens height; 4 1/4 in total height; 1.25 in lens diameter
- Average life
- 60,000 hours
- Recommended viewing distance
- 50 ft or more
What This Bulb Works With
Compatibility is checked as a complete installation package, not from the lamp base alone.
- Control
- Steady-light circuit with an approved mechanical timer, photocell, or compatible dimmer
12-Inch Spacing Planning Example
At 12-inch socket spacing, planned lamp quantity is approximately equal to the roofline length in feet. Add 5–10% service stock.
| Roofline length | Lamps | Matched socket line | Clips | Control / circuit |
|---|---|---|---|---|
| 50 ft | 50 + 3–5 spares | 50 ft matched socket line | 50 | Single zone after load review |
| 100 ft | 100 + 5–10 spares | 100 ft matched socket line | 100 | Timer/photocell after load review |
| 200 ft | 200 + 10–20 spares | 200 ft total planned line | 200 | Split according to circuit plan |
| 500 ft+ | Calculated from drawings | Configured from project layout | Calculated from layout | Multi-zone project design |
Reference configuration only—not a universal electrical layout. Final circuit loading, maximum run length, wire type, weather protection, and zoning must be approved for the selected components and local requirements.
Send your roofline drawing for a complete BOMCompare C9 Lens Styles
Choose by daytime appearance, diffusion, viewing distance, and the visual effect required by the project.
A faceted C9 retrofit lamp that combines a traditional holiday-light appearance with efficient SMD LED output for serviceable commercial C7/C9 systems.
View model Smooth semi-diffused C9 lampC9 Transparent LED BulbA smooth C9 LED lamp with a transparent milky lens that softens visible LED points while preserving a bright, defined holiday-light appearance.
View model Current modelC9 Smooth Opaque LED BulbA smooth opaque milky C9 lamp designed to provide an even, diffused point of light across professional seasonal rooflines and displays.
SelectedFrequently Asked Questions
Can this bulb be used on an existing C9 light line?
It can be considered when the existing line uses the same E17 base and its voltage, wire type, socket condition, dimmer, and outdoor protection match the approved lamp model. We recommend confirming the complete line before ordering replacements.
How many bulbs are required for a roofline?
At 12-inch socket spacing, the planned lamp count is approximately equal to the roofline length in feet. Add 5–10% service stock. Other spacing options must be calculated from the actual drawing.
Can replacement bulbs be supplied without a complete system?
Yes, replacement-lamp supply can be discussed after compatibility is confirmed. For a new installation, we recommend configuring the bulb, socket line, wire, plugs, clips, and control together.
Request a Quote for This Lamp
Specify the model, quantity, color, socket-line spacing, and target market. We will reply with a coordinated compatibility check and quotation.
